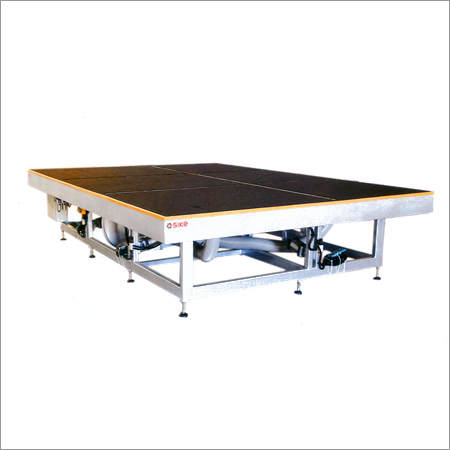

    Breakout Tilting Table

    Breakout Tilting Table
    Breakout Tilting Table
    Product Code : BTT10
    Brand Name : S. K. GLASS MACHINES
    Product Description

    Our company is one of the prominent manufacturers, suppliers and exporters of Break Out Table With Tilting Arms Jumbo that is perfect,  flat surface covered with a thick felt with breakout bars that are lifted pneumatically to break the glass into desired size. The tilting air flotation table is composed of air flotation table, breakout bars, air blower, air cylinder, electric cabinet, foot switch, etc. so it can tilt to pick up glass sheets from vertical position to horizontal position. The offered range OF Break Out Table With Tilting Arms Jumbo is made by using optimum quality material with the aid of modern technology and have features like  Automatic NC Cutting Line with Loader, Cutting Machine and the Breakout Table or as a stand- alone table for manual or semi-automatic cutting.

    Features:

    • Corrosion resistance
    • Sturdiness
    • Reliable functions
    • Durable
    Product Highlights:
    • Breakout Table are made of tubular steel structure which is welded accordingly to form a frame for glass handling
    • Series of pneumatically activated breakout bars inserted in the working table with their pedal commands located close to their respective bar
    • Concealed and compact blow design to minimize noise levels
    • Air floatation allows free movement of the glass on working table
    • High quality scratch proof Italian Felt glued to the surface
    • Homogeneous air-distribution throughout the cushion table
    • The pneumatic breaking table enjoys stable function and high durability
    • The table can break out glass in many positions, reducing the intensity of labor
    • This table is especially suitable for break out thick glass between 3-19mm

    The breakout table is installed after cutting table, which is accessory for cutting line. Machine is with advance design, it had vertical and horizontal break device, also can be added unloading bar or conveyor wheels for easy unloading. Machine can be used with cutting table or independently.

    Technical Specification :

    Model

    Max glass size

    Glass Thickness

    Length X Width X Height

    Power

    SKB-3727

    3700mm X 2700mm

    3mm-19mm

    4000mm X 2900mm X 900mm

    3 KW

    SKB-4529

    4500mm X 2900mm

    3mm-19mm

    4600mm X 3000mm X 900mm

    3 KW

    SKB-6133

    6100mm X 3300mm

    3mm-19mm

    6100mm X 3400mm X 900mm

    6 KW

    SKB-6135

    6100mm X 3500mm

    3mm-19mm

    6100mm X 3600mm X 900mm

    6 KW
