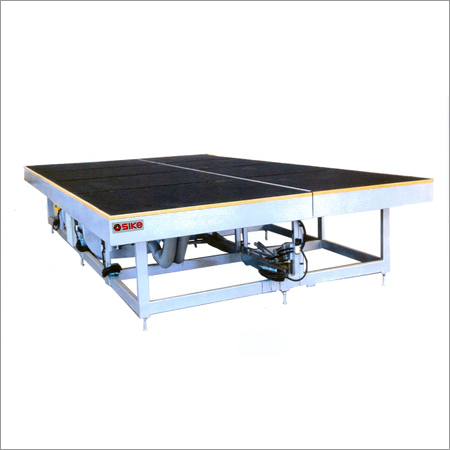

Breakout Tables

Breakout Tables
Breakout Tables
Send Inquiry
Product Code : BT11
Brand Name : S. K. GLASS MACHINES
Product Description

Our organization is one of the outstanding manufacturers, suppliers and exporters of Break Out Table Jumbo that is perfect, flat surface covered with a thick felt with breakout bars that are lifted pneumatically to break the glass into desired size. The tilting air flotation table is composed of air flotation table, breakout bars, air blower, air cylinder, electric cabinet, foot switch, etc. so it can tilt to pick up glass sheets from vertical position to horizontal position. The offered range of Break Out Table Jumbo is fabricated by using optimum quality material with the aid of modern technology and have features like  Automatic NC Cutting Line with Loader, Cutting Machine and the Breakout Table or as a stand- alone table for manual or semi-automatic cutting.

Features:

  • Corrosion resistance
  • Sturdiness
  • Reliable functions
  • Low maintenance
Product Constructional Highlights:
  • Breakout Table are made of tubular steel structure which is welded accordingly to form a frame for glass handling
  • Series of pneumatically activated breakout bars inserted in the working table with their pedal commands located close to their respective bar
  • Concealed and compact blow design to minimize noise levels
  • Air floatation allows free movement of the glass on working table
  • High quality scratch proof Italian Felt glued to the surface
  • Homogeneous air-distribution throughout the cushion table
  • The pneumatic breaking table enjoys stable function and high durability
  • The table can break out glass in many positions, reducing the intensity of labor
  • This table is especially suitable for break out thick glass between 8mm and 25mm

Technical Specification :

Model

Max glass size

Glass Thickness

Length X Width X Height

Power

SKB-3727

3700mm X 2700mm

3mm-19mm

4000mm X 2900mm X 900mm

3 KW

SKB-4529

4500mm X 2900mm

3mm-19mm

4600mm X 3000mm X 900mm

3 KW

SKB-6133

6100mm X 3300mm

3mm-19mm

6100mm X 3400mm X 900mm

6 KW

SKB-6135

6100mm X 3500mm

3mm-19mm

6100mm X 3600mm X 900mm

6 KW
